Glassfiber High Temperature HEPA Filter With SS Frame And Alluminum Separators

Basic Information
Place of Origin: China
Brand Name: Camfil
Certification: EN 1822
Model Number: 1FRK®
Minimum Order Quantity: 100
Price: Negotiable
Payment Terms: L/C, T/T
Detail Information
Frame: Stainless Steel 304# Separators: Aluminum Foil
Media: Special Glass Fiber Paper Gasket: Glass Fiber
Sealant: Ceramic Efficiency: H13(EN1822)≥99.95% @ MPPS
Temperature For Continuous Service: ≤350℃ Humidity: ≤100%RH
Recommended Final Pressure Drop: ≤500Pa Applicationss: Pharmaceutical, Chemistry
Certificatation: EN1822
High Light:

Glassfiber HEPA Filter


Glassfiber High Temperature Filters


Glassfiber High Temperature HEPA Filters

Product Description

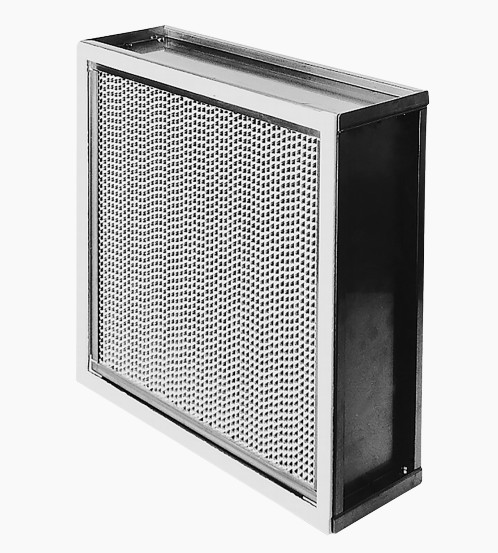

350℃ H13 High-Temperature Glassfiber HEPA Filter With Stainless Steel Frame And Alluminum Separators


350℃ Heat Resistant Absolute 1FRK® Series Hepa Air Filter Stainless Steel Frame


HEPA H13 filter for VERY high temperature applications (e.g. sterilization tunnels) up to 350℃ as protection for clean processes.

Stainless steel frame and aluminum separators give high stability.

Pleates are uniformly separated by corrugated aluminum separators incorporating a hemmed edge to prevent damage to the media.


  • High temperature HEPA Filter
  • Filter class H13 acc. to EN 1822 (at 20℃)
  • High air velocity (1,5m/s)
  • Maximum continuous operating temprature 350℃
  • 100% leak-free: individually scan tested at 20℃
  • High mechanical stability




Frame Stainless Steel 304#
Separator Aluminum foil
Media Glass fiber
Gasket Glass fiber
Sealant Ceramic










Tolerance of pressure drop ±15%

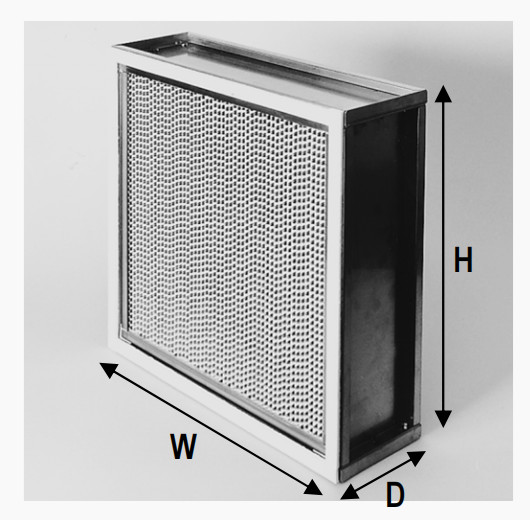

Other dimensions & gasket on request

Type -1W= gasket upstream (standard)


Please note installation and assembly instructions! Due to the different thermal expansion coeffiecients of the individual filter components the ceramic potting may form cracks during the tempering process. At operating temperature (350℃) these filters have an overall efficiency of 99.97% at 0.3μm, leackages are possible.
