| Place of Origin: | China |
|---|---|
| Brand Name: | Camfil |
| Certification: | EN 1822 |
| Model Number: | 1FRKV |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Frame: | Reinforced Stainless Steel | Separators: | Aluminum Foil |
|---|---|---|---|
| Media: | Special Glass Fiber Paper | Gasket: | Glass Fiber |
| Sealant: | Ceramic | Efficiency: | H13(EN1822)≥99.95% @ MPPS |
| Temperature For Continuous Service: | ≤350℃ | Humidity: | ≤100%RH |
| Recommended Final Pressure Drop: | ≤500Pa | Applicationss: | Pharmaceutical, Chemistry |
| Certificatation: | EN1822 | ||
| High Light: | H13 High Temperature HEPA Filters,Stainless Steel High Temperature HEPA Filters,Glassfiber High Temp Hepa Filter |
||

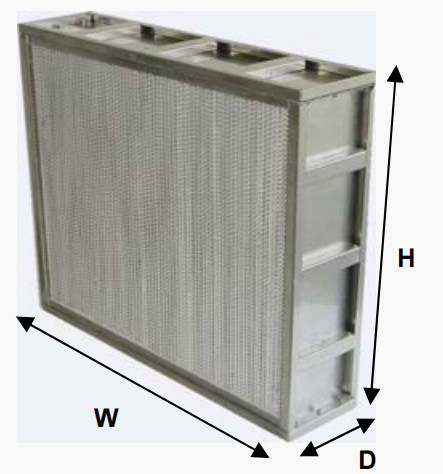

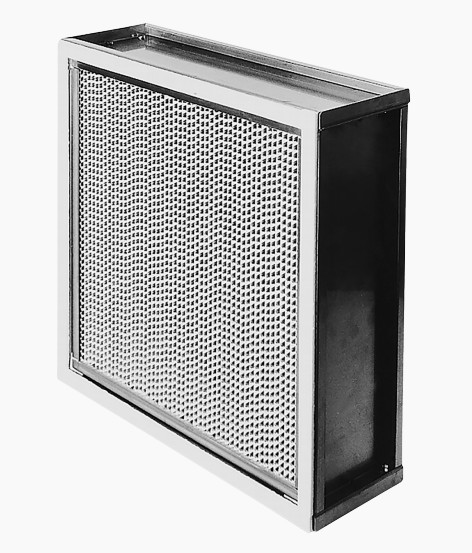

H13 350℃ High-Temperature Glassfiber HEPA Filter With Reinforced Stainless Steel Frame
350℃ HT Absolute 1FRKV Series Hepa Air Filter with Reinforced Stainless Steel Frame
FRVK is a high temperature HEPA filter used as a protection for clean processes.
The Reinforced stainless steel frame and uniform pleates separated by tapered corrugated aluminum separators give high air velocity and prevent damages to the media.
It seals with ceramic based materials to ensure heat resistance due to the different thermal expansion coeffiecients of the individual filter components the ceramic potting may form cracks during the tempering process.
At operating temperature (350℃) these filters have an overall efficiency of 99.97% at 0.3μm, leackages are possible.
| Frame | Reinforce Stainless Steel |
| Separator | Aluminum foil |
| Media | Glass fiber |
| Gasket | Glass fiber |
| Sealant | Ceramic |
Tolerance of pressure drop ±15%
Other dimensions & gasket on request
Type -1W= gasket upstream (standard)
Please note installation and assembly instructions!
