| Place of Origin: | China |
|---|---|
| Brand Name: | Local Brand |
| Certification: | CAN/ULC S111 |
| Model Number: | pocket air filter |
| Minimum Order Quantity: | 100pcs |
| Price: | usd15-39/pcs |
| Packaging Details: | pallet |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T |
| Supply Ability: | 100000 pcs/year |
| Frame: | Galvanized Steel | Humidity: | 100% Rh |
|---|---|---|---|
| Gasket: | Cr,EVA,EPDM | Recommended Final Pressure Drop: | 450 PA |
| Optional Thickness: | 20mm,21mm,25mm,46mm | Transport Package: | Pallet |
| Production Capacity: | 100000PCS | Specification: | 592*592*380 |
| Efficiency: | M5/M6 | Airflow: | 3400 |
| Initial Pressure: | 50 | ||
| High Light: | 450PA Pocket Bag Filter,Chemical Pocket Bag Filter,Pharmaceutical Bag Air Filters |
||
Pre-Filter Pocket Air Filter Bag Filter Used In Chemical Pharmaceutical Factory
Basic information
| Model NO. | Pocket Air Filter | Max Temperature | 70°c |
| Humidity | 100% Rh | Frame | Galvanized Steel |
| Gasket | Cr,EVA,EPDM | Recommended Final Pressure Drop | 450 PA |
| Optional Thickness | 20mm,21mm,25mm,46mm | Structure Type | Pocket Filter |
| Transport Package | Pallet | Specification | 592*592*380 |
| Origin | China | HS Code | 84219990 |
Speciality:
Strong adsorption ability
Large filter area
Good ventilation effect.
Application
Pocket Bag Air Filters are typically used as a secondary or final filter used after (behind) a pleated filter. Bag air filters, often referred to as bag filters and pocket filters, come in five levels of efficiencies; 40-45%,60-65%, 80-85%,90-95% and above 95%- or MERV 8,11,13,14,and15 ratings.
The filter is made with pieces of media, sealed together to form pockets. Each bag air filter can have a specified number of pockets, whether they be 3 pocket bag filter, or 6 pocket bag filter, the pockets themselves can vary in length. With these combinations of pockets and lengths, many surface areas sizes can be created. Generally, a larger surface area will give you better Dust Holding Capacity (DHC) and longer service life of the filter.

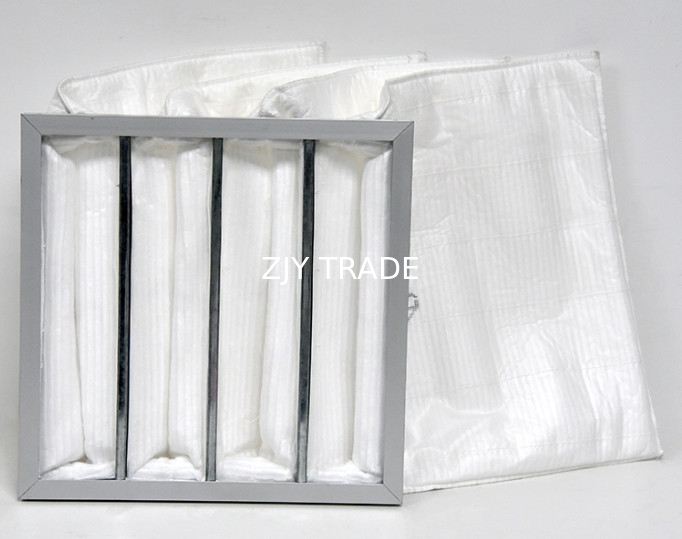

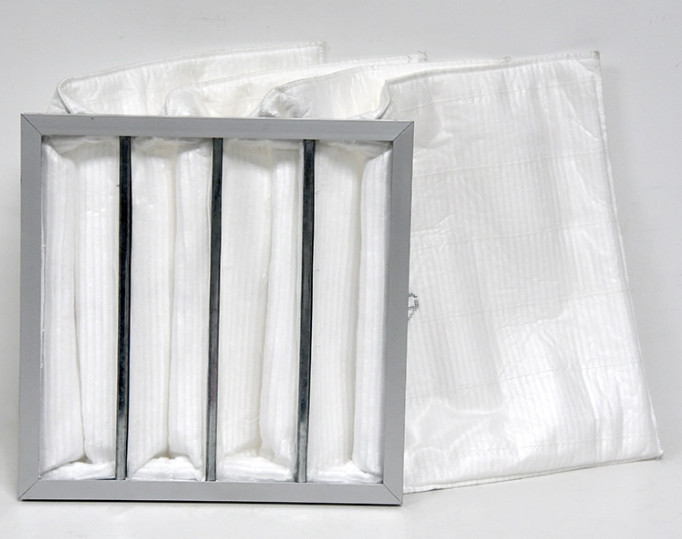

Product Picture:
Company Profile
ZJY is a trading company located in Suzhou, next to Shanghai.
For years, we've been an authorized distributor of H&V, Ahlstrom, Lydall, Absolent, Exomist, Indass and other applications in filtration system.
All the filter elements we trade abroad are manufactured with media provided by ourselves.
The advantage of ZJY is to seek the most cost effective and quality guaranteed products for our customers.
We remain at your disposal for any kinds of product you'd like to procure from China.If you have any interesting products, please feel free to let me know,we will provide you the best price and service.
Transport & Payment
F&Q
Q: What is your product range?
A: Our replacement filters cover from Industrial dust collector filter bags/pleated cartridges, HVAC commercial building panels, HEPA filters, Air compressor filters and compressed air purification element, Heavy duty Intake Air filters, EDM wire cutting filters and so on.
Q: Is customized filter or OEM available?
A: Yes, we need your detailed application description and required filter specifications.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build new molds with molding fee charged.
Q: What's your terms of packing?
A: Generally, we pack our goods in neutral boxes, PE membranes + carton cases. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q: What's your terms of delivery?
A: EXW/FOB/CIF. Customer indicated forwarders or our own agents.
Q: How about your production lead time?
A: Generally, within MOQ quantity it takes 5-7 working days after receiving your advanced payment. The specific delivery time depends on models and the quantity of your order, which should be checked with our planners.
Q: What's your sample policy?
A: We can supply 1~2 samples if we have stock, but the customers have to pay 100% sample cost and the courier cost in advance, and we will refund sample cost in your bulk orders.
